Product

BP Series

These regulators are used as second stage regulator in LPG,natural gas and SNG installations.

Product	Code	Model	Diameter	Flow rate	Inlet pressure	Outlet pressure

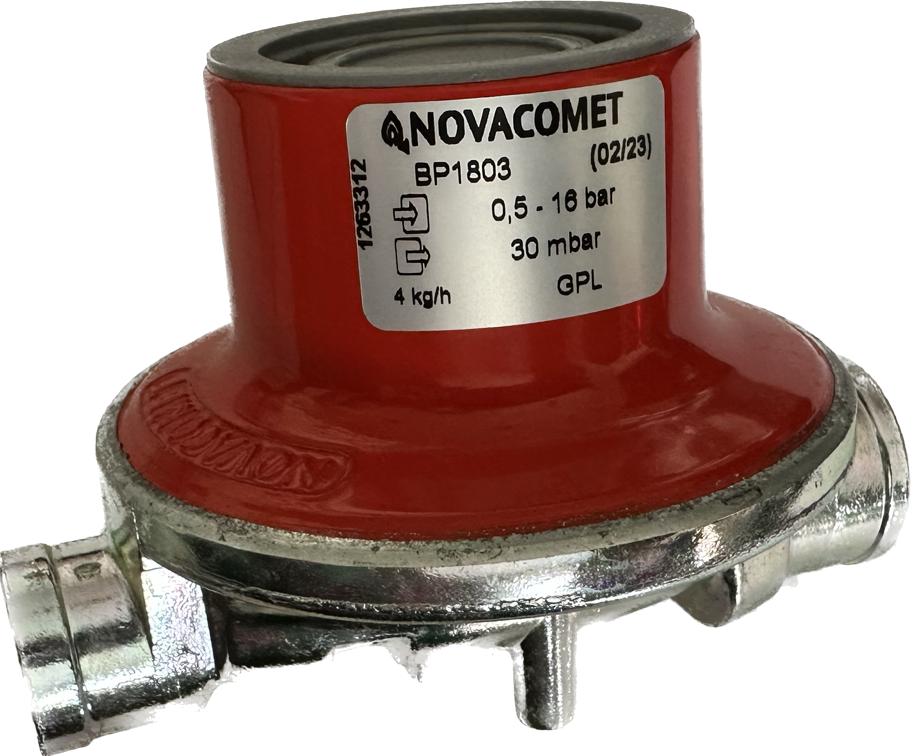

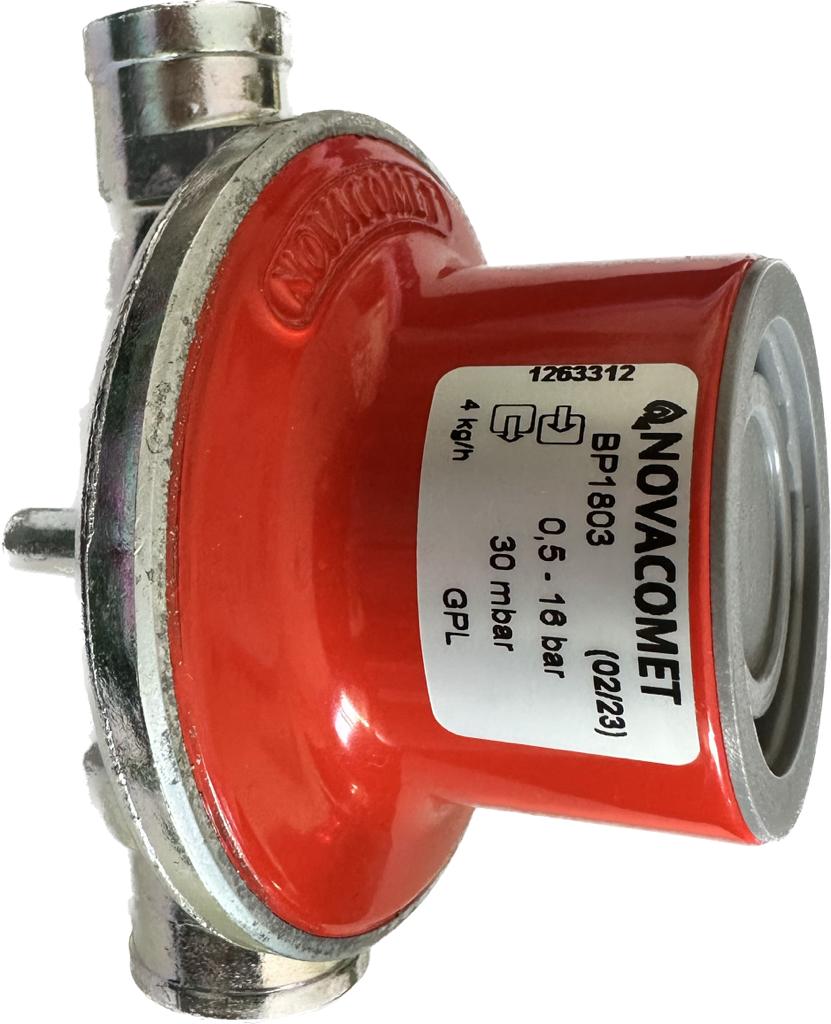

	NC-0600	BP-1803	¼” x 3/8”	4 kg/h	1-16 bar	30 mbar
	NC-0600	BP-1803	¼” x 3/8”	4 kg/h	1-16 bar	50 mbar
	NC-0780A	BP-1813	¼” x 3/8”	4 kg/h	1-16 bar	20-90 mbar
	NC-0780B	BP-1813	¼” x 3/8”	4 kg/h	1-16 bar	5-300 mbar
	NC-0780C	BP-1813	¼” x 3/8”	4 kg/h	1-16 bar	20-300 mbar

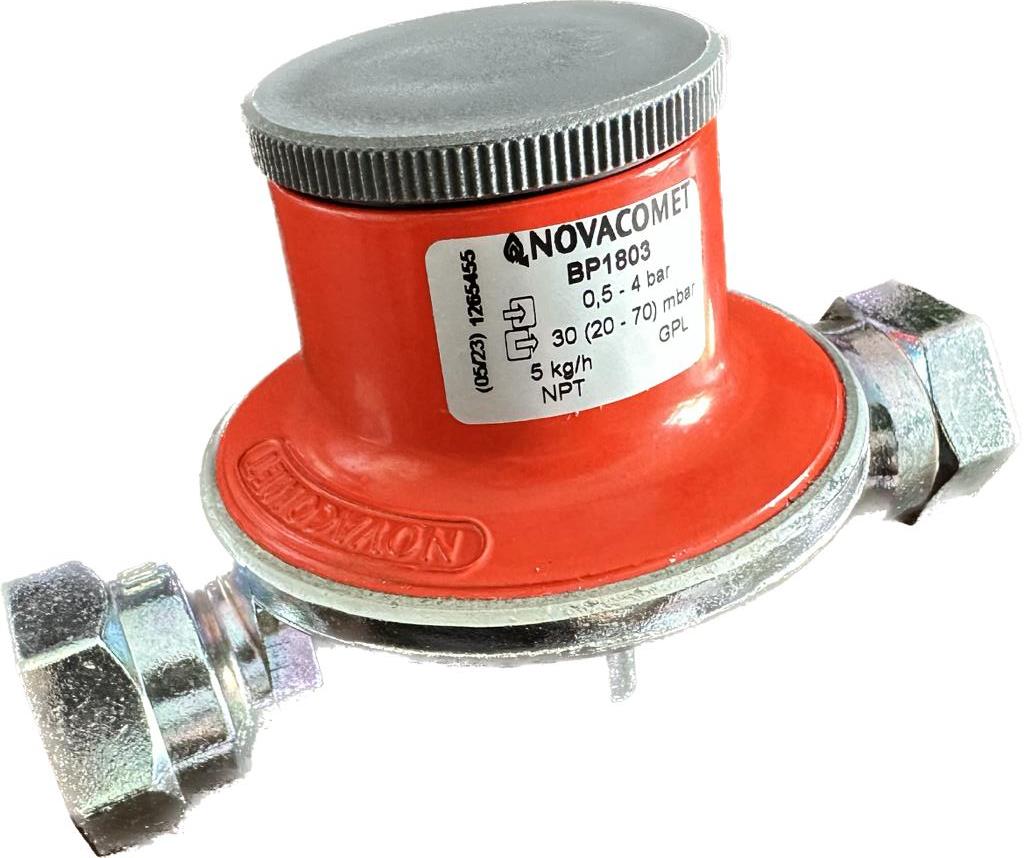

	NC-0606	BP-1803	¼” x 3/8”	5 kg/h	0.5-4 bar	30 (20-70) mbar

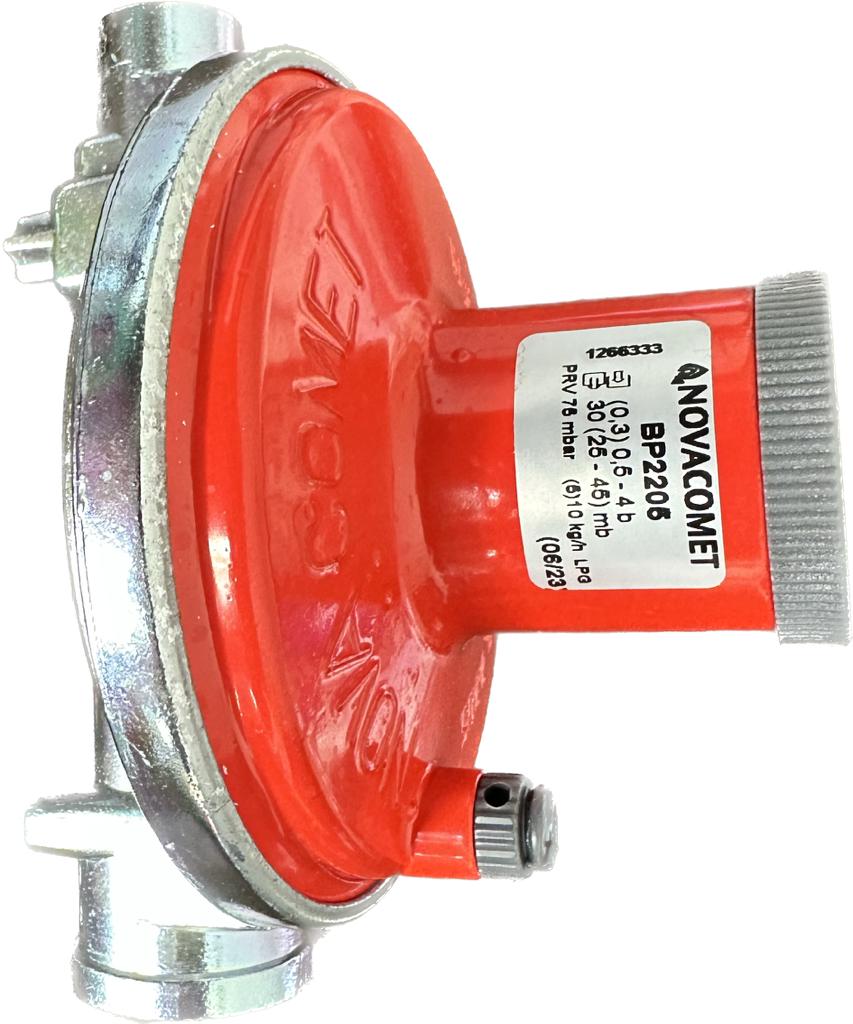

	NC-0860	BP-2205	¼” x ½”	10 kg/h	0.5-4 bar	30 mbar

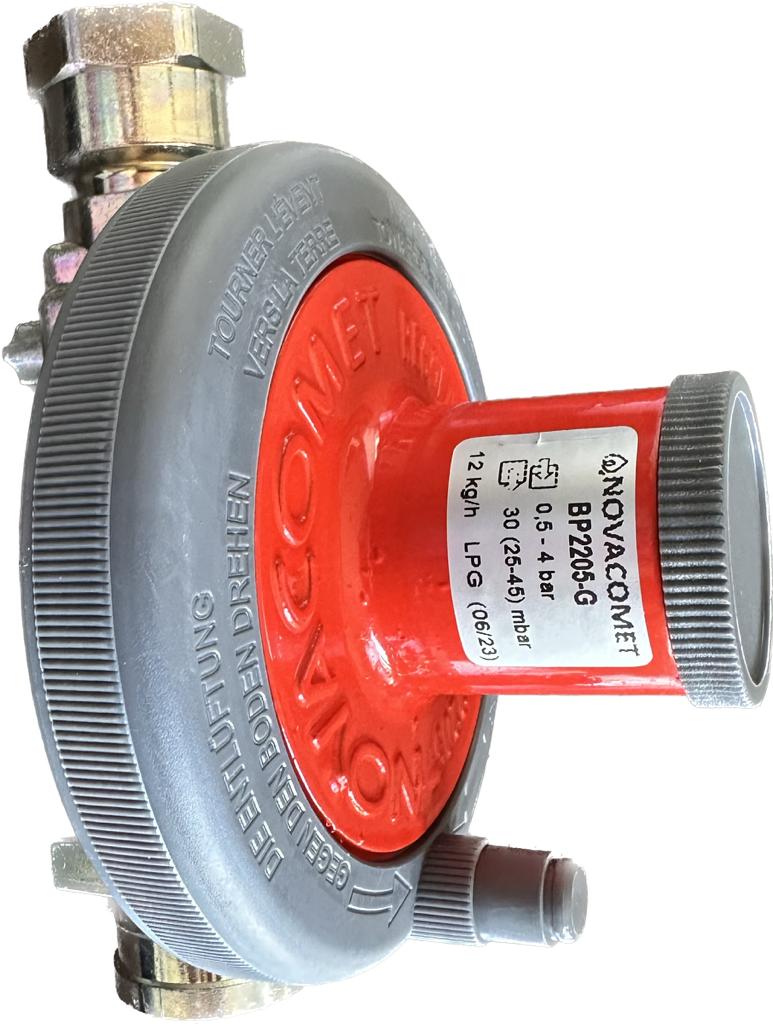

	NC-0950	BP-2205G	½” x ½”	12 kg/h	0.5-4 bar	30 mbar

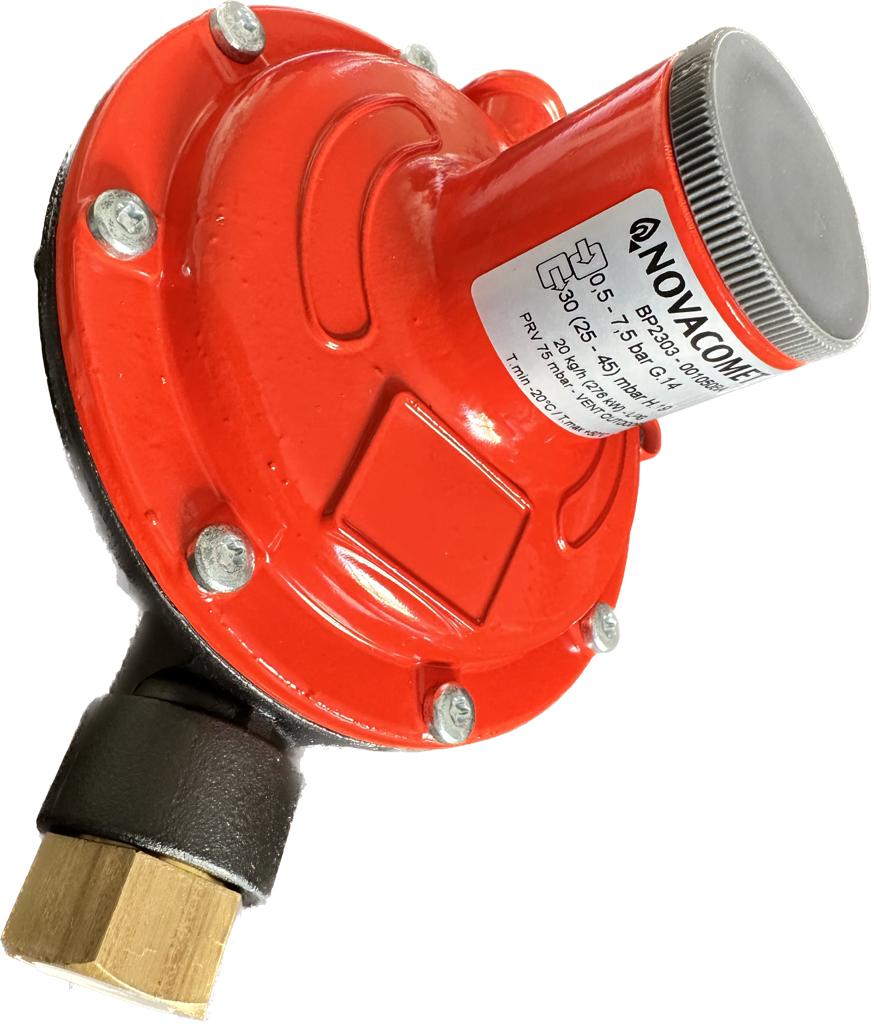

	NC-1050BA	BP-2303	½”x ¾”	20 kg/h	0.5-7.5 bar	30 mbar
	NC-1050AA	BP-2303	½”x ¾”	30 kg/h	0.5-4 bar	30 mbar
	NC-1070BA	BP-2303R	½”x ¾”	20 kg/h	0.5-7.5 bar	20-300 mbar

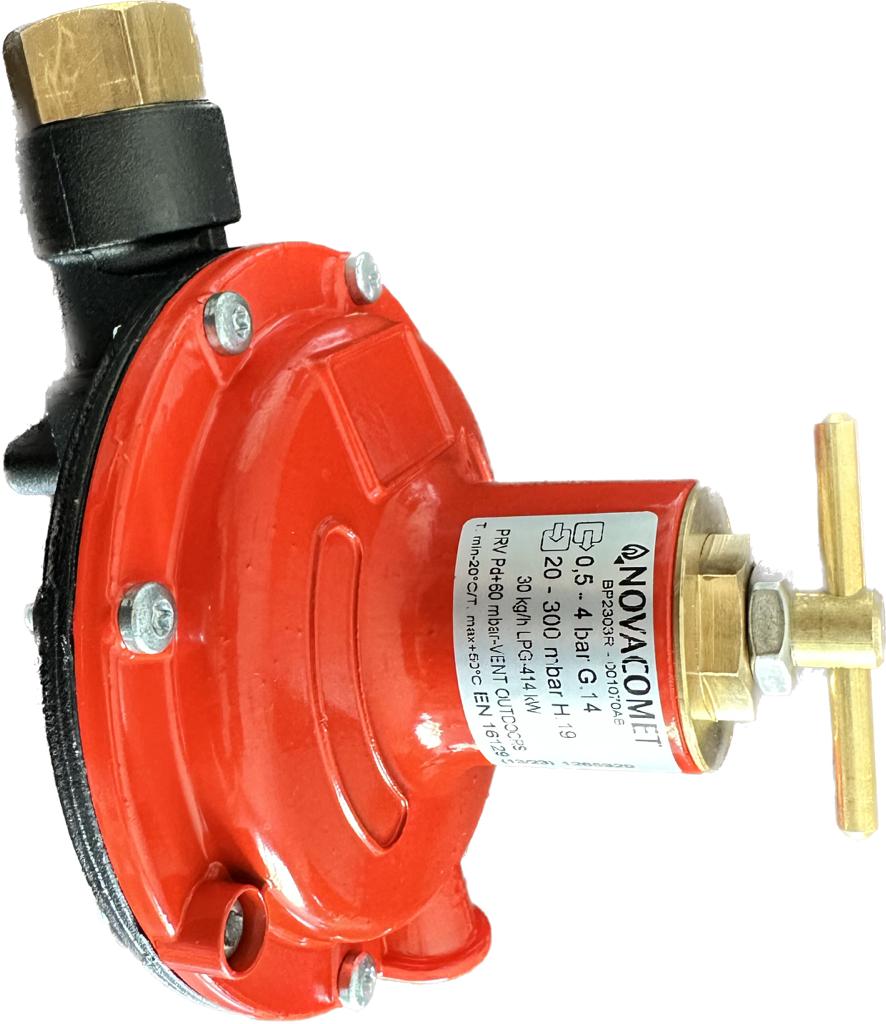

	NC-1070	BP-2303R	½”x ¾”	30 kg/h	0.5-4 bar	20-300 mbar
	NC-1100CA	BP-2403	¾”x1”	50 kg/h	0.5-2 bar	30 mbar
	NC-1110CA	BP-2403R	¾”x1”	40 kg/h	0.4-4 bar	10-200 mbar
	NC-1112CA	BP-2403R	¾”x1”	40 kg/h	0.5-4 bar	100-300 mbar
	NC-1200CA	BP-2402L	1”x1 ¼”	70 kg/h	0.5-2 bar	30 mbar
