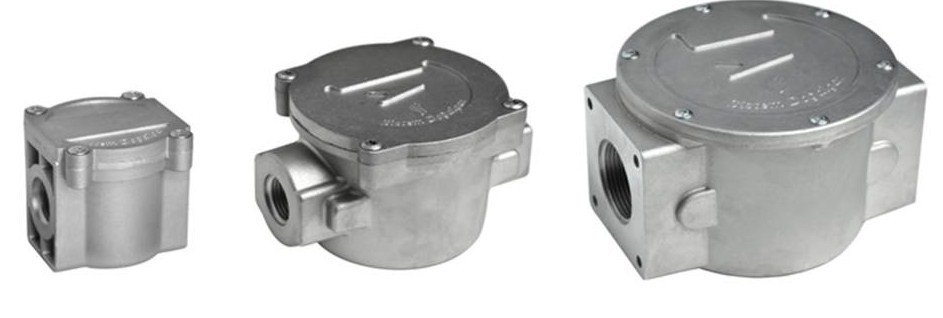

Threaded filters
.jpg)
Gas filters are installed upstream of pressure regulator,meter,control devices in gas pipeline.They protect the equipments installed downstream,preventing the passage of dust and solid particles in the gas. Filter cartridge ensures high filtration capacity. They are suitable for all types of natural gas,LPG and non corrosive gases.
Technical specifications
|
|
Body |
: |
Aluminium |
|
Connections |
: |
½” …2” ( threaded , UNI-ISO 7/1 ) |
|
Maximum inlet pressure |
: |
6 bar |
|
Test pressure |
: |
10 bar |
|
Filtration capacity |
: |
≤ 50 μm |
|
Working temperature |
: |
-20oC…+80oC |
|
Code |
Connections |
Pmax |
|
COMPACT FILTER |
|
SDKF015 |
1/2” x 1/2” |
6 bar |
|
SDKF020 |
3/4” x 3/4” |
6 bar |
|
24001G |
1/2” x 1/2” |
6 bar |
|
24002G |
3/4” x 3/4” |
6 bar |
|
24003G |
1” x 1” |
6 bar |
|
GAS FILTER |
|
SDF015 |
1/2” x 1/2” |
6 bar |
|
SDF020 |
3/4” x 3/4” |
6 bar |
|
SDF025 |
1” x 1” |
6 bar |
|
SDF032 |
1 ¼” x 1 ¼” |
6 bar |
|
SDF040 |
1 ½” x 1 ½” |
6 bar |
|
SDF050 |
2” x 2” |
6 bar |
|
24201G |
1/2” x 1/2” |
6 bar |
|
24202G |
3/4” x 3/4” |
6 bar |
|
24203G |
1” x 1” |
6 bar |
|
24204G |
1 ¼” x 1 ¼” |
6 bar |
|
24205G |
1 ½” x 1 ½” |
6 bar |
|
24206G |
2” x 2” |
6 bar |
